An internationally renowned brand of automotive electronics production plants uses a program-controlled DC power supply to conduct voltage pulse test experiments on products, which are used to verify the reliability and stability of the products.

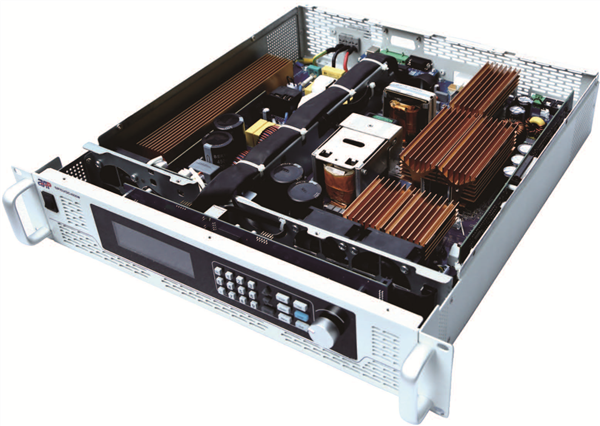

Marine Instruments offers a variety of multi-brand programmable DC power supplies to meet customer needs and to complete the product's functional test solutions!
These programmable DC power supplies have built-in common test waveforms that meet the standards of the automotive electronics industry, eliminating the tedious programming time before testing. Test engineers can adjust the waveform parameters themselves to output waveforms at different test levels.
The test waveform has strict requirements on the voltage rise and fall of the power supply. The use of the all-day technology programmable DC power supply has the patented technology, which can fully meet the test requirements.

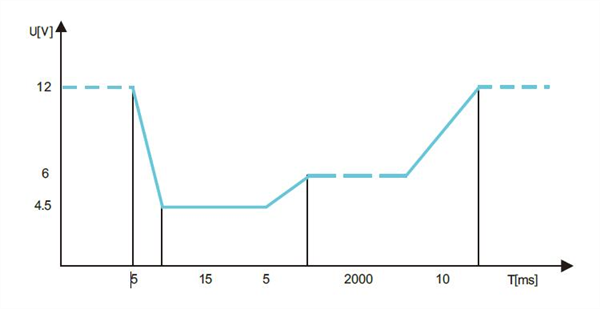

Standard: DIN40839 Standard: ISO16750-2

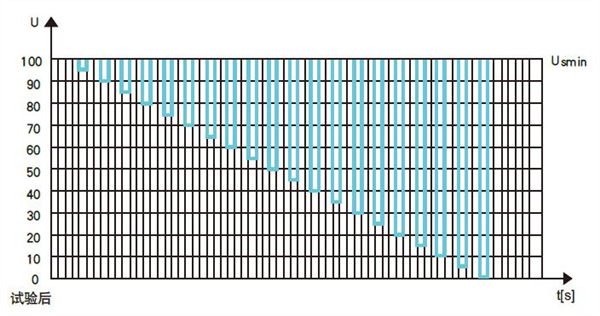

Test Project: Automotive Electronics Engine Startup Test Test Project: Automotive Electronics Reset Performance Test

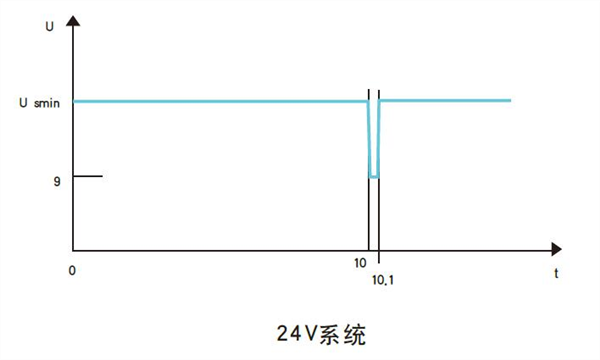

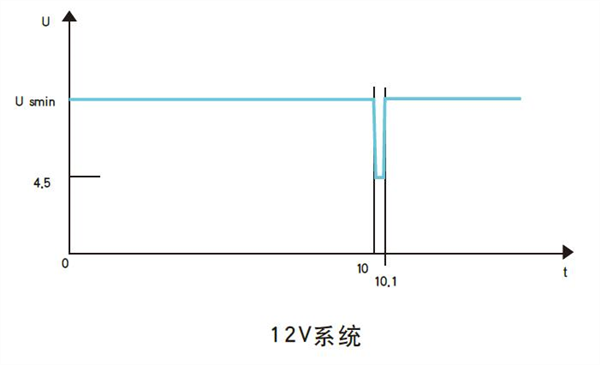

The following test waveforms are used to simulate the impact of voltage drops on other electronic circuits in electronic circuits after the fuses in complex circuits in automobiles.
Standard: ISO16750-2
Test project: instantaneous interruption test

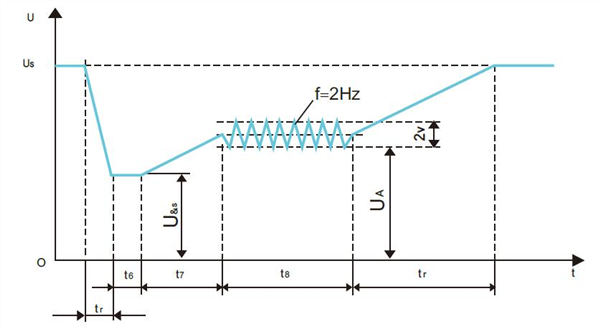

The following test waveforms are similar to the test waveforms in the DIN40839 standard. A section of the ripple component is added to the middle section for a more realistic simulation engine start-up test.
Standard: ISO16750-2
Test project: engine start test for automotive electronics
