The most complete structure diagram

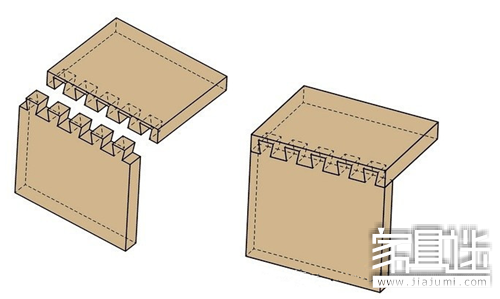

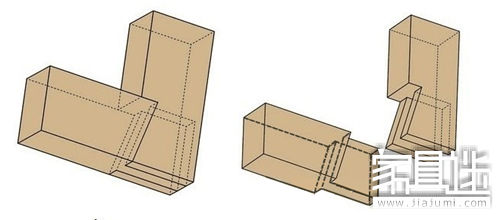

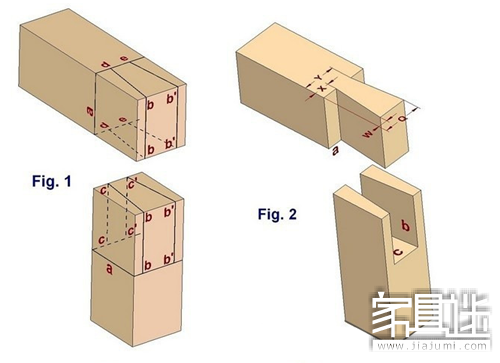

Semi-Hidden Dovetail Joint

This joint is a variation of the traditional dovetail, designed to be partially hidden for a cleaner appearance while still maintaining strong structural integrity. It's commonly used in cabinetry and fine woodworking.

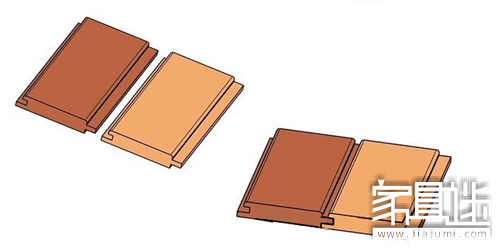

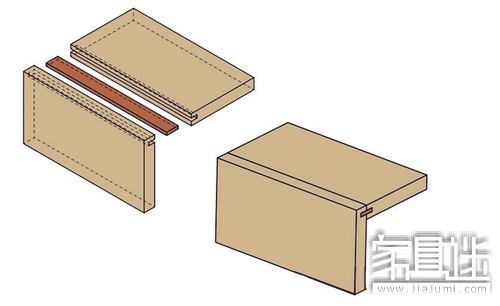

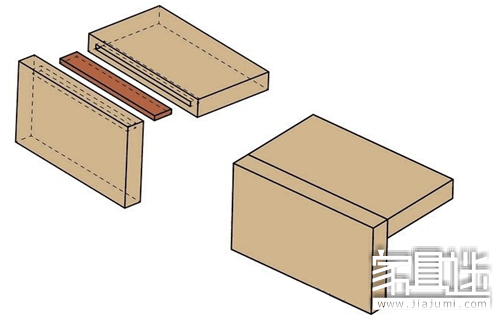

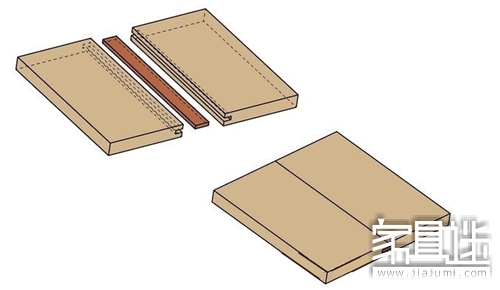

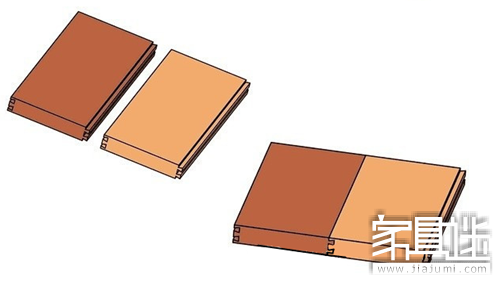

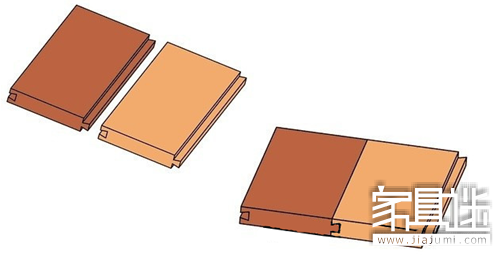

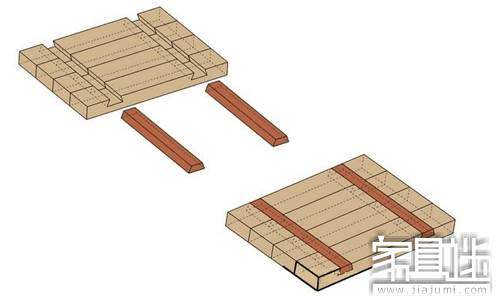

Thin Plate Grooving

Thin plate grooving is a technique used to create precise channels in thin sheets of material, often for fitting components together or for decorative purposes. This method ensures a tight fit and enhances the overall structure of the piece.

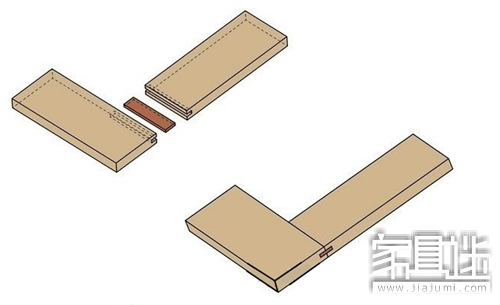

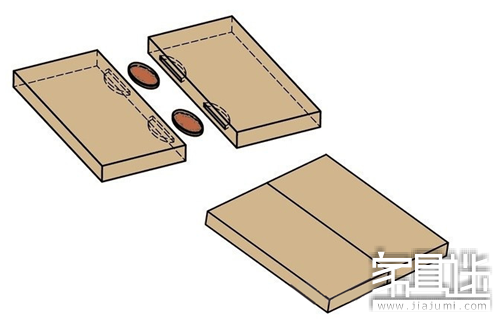

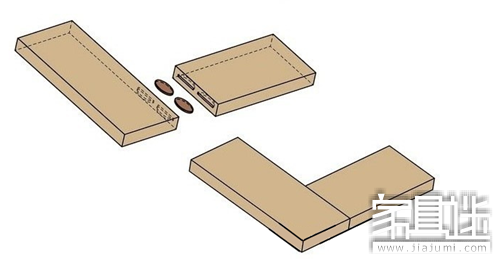

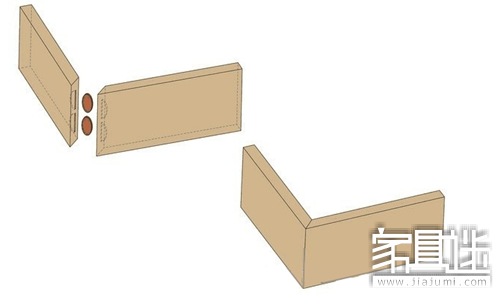

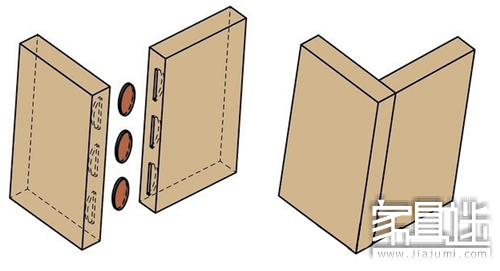

Biscuits (Also Known as Dowels)

Biscuits are small, oval-shaped wooden pieces that are inserted into pre-cut grooves to align and strengthen joints. They are widely used in furniture making for their ease of use and strong hold.

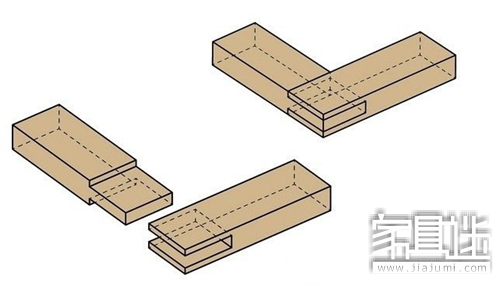

Wear a Piece

This refers to a specific type of joint where a piece is worn or fitted into another part, often seen in decorative or functional woodwork where aesthetics and strength are both important.

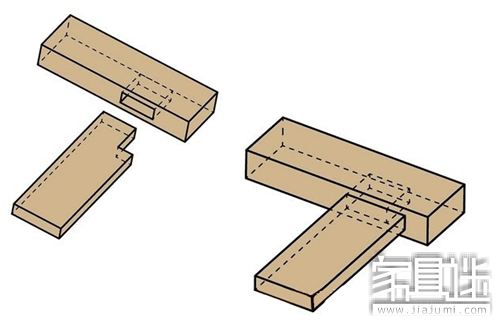

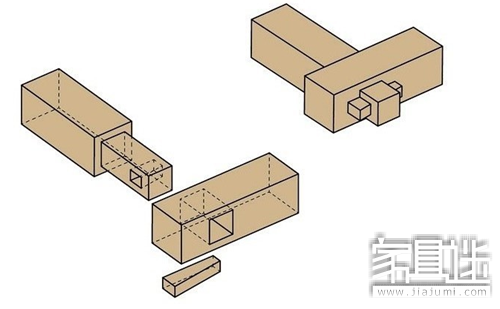

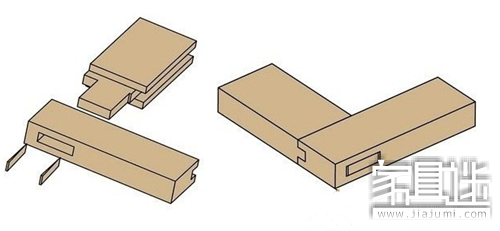

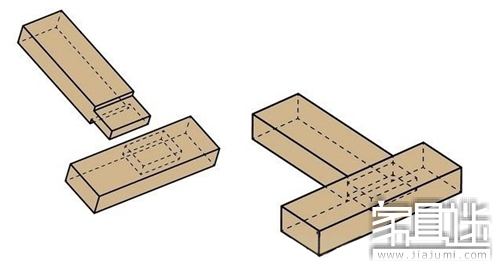

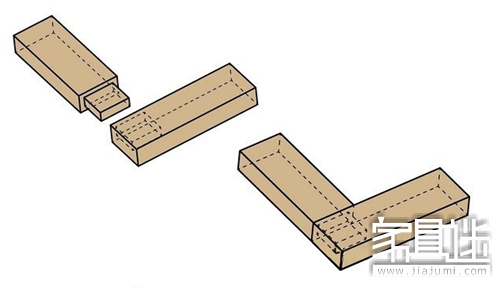

Square Wood Pin Concealed Joint

A square wood pin concealed joint is a strong and durable method of joining two pieces of wood. The pin is hidden within the joint, providing both strength and an elegant finish.

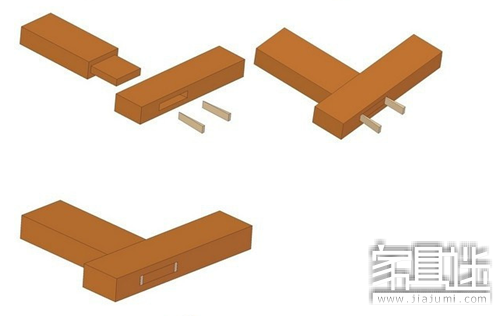

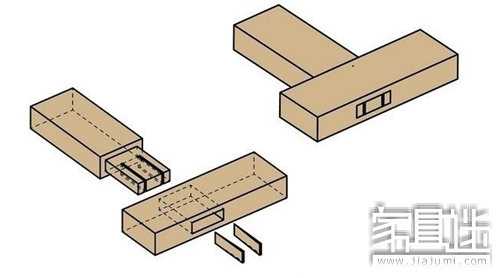

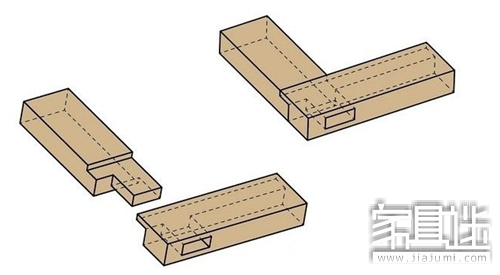

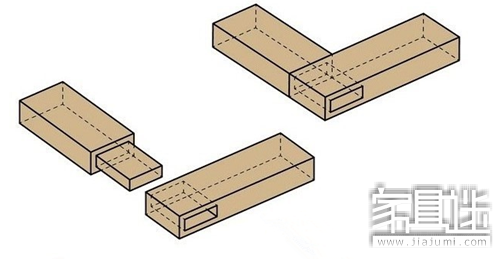

Square Wooden Pin Through Belt Joint

This joint uses square wooden pins that pass through the joint, creating a strong connection. It's ideal for large structures where extra reinforcement is needed.

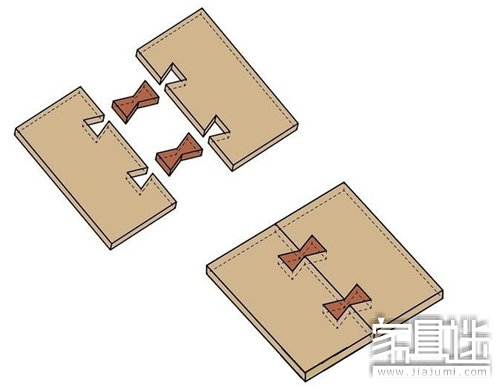

Butterfly Pin Wood Puzzle

This unique joint resembles a butterfly shape and is used for both decorative and functional purposes. It allows for easy disassembly and reassembly while maintaining a secure fit.

Shoulder Joint
