Home cooking is inseparable from the cooker. It is convenient and delicious to cook with a cooker. However, there are many types of cookers on the market. When purchasing a cooker, there are many factors to be considered. One of the most important points is the size of the cooker . So how big is the size of the cooker? What is the structure of the cooker? Let's take a look at the decoration home decoration network Xiaobian.
How large is the cooker size?
1. The size of the cooker: Compared with the embedded cooker, only the embedded cooker can distinguish the outer size and the opening size. The size of the cooker mainly includes the outer shape and the opening size of the cooker.
2, the size of the cooker: the size of the stove, the size of the stove's appearance, is also the size of the panel. Since the size of the panel is larger than that of the cooker, the maximum size is taken as the outer dimension.
3. The size of the opening of the cooker: also called the size of the hole of the cooker, that is, the outer diameter of the chassis. The size of the hole when the cooker is installed is much smaller than the outer shape, which is the size of the stove. Since the embedded is to be embedded in the cabinet, to open the hole, the size of the real opening is larger than the size of the opening of the cooker, but it should not be too large, otherwise the stove will be loose after being installed.
The size of the hole for the cooker will vary depending on the model. The single eye is the general size. The size of the double eye is generally between 500 and 700. The size of the multi-eye is larger.

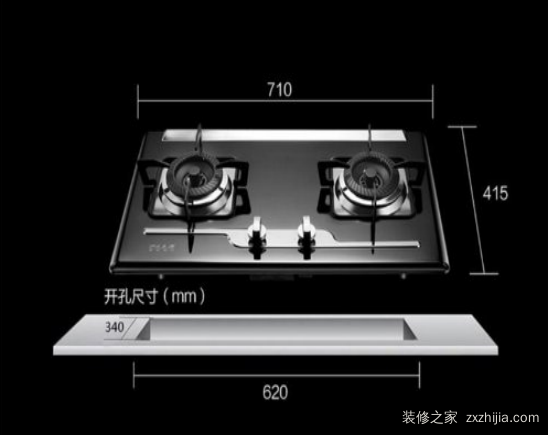

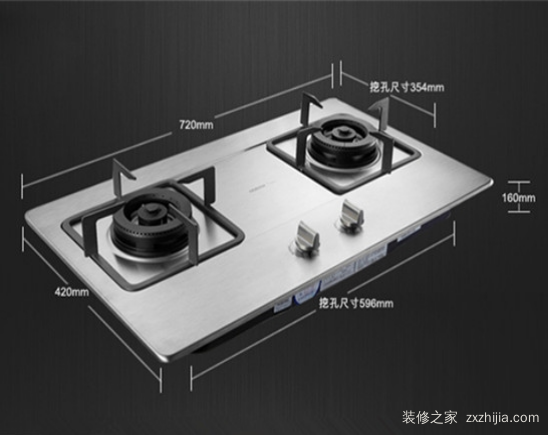

Common cooker dimensions and opening dimensions: opening size 680mm*350mm, outer dimensions 748mm*405mm*148mm; opening size 708mm*388*R80mm, outer dimensions 760mm*460mm*80mm; opening size 674mm*355mm, shape Dimensions 740mm*430mm*140mm; opening size 635mm*350mm, outer dimensions 720mm*400mm; opening size 645mm*340mm*R30mm, outer dimensions 710mm*400mm*165mm; opening size 635mm*350mm, dimensions: 720mm*400mm *125mm.
What is the structure of the cooker?
1, valve body - double coil:
Material: cast copper body; function: double coil 0 second valve, accurate 100% ignition, service life up to 200,000 times; role: save gas, fast ignition, no waiting.
2, ignition needle - ceramic material:
Material: The external material of the ignition pin is made of ceramic, because the high temperature resistance of the ceramic reaches 800 degrees or more. Function: Therefore, the high temperature environment of the combustion will not deform the ignition needle, so the ignition will never be biased.
3, the burner - short handle venturi tube:
Material: cast iron, double-sided chrome plating inside and outside, enhance its corrosion resistance, oxidation resistance, acid and alkali resistance, effectively extend the service life of the burner and improve the safety factor. Short-handled venturi tube: fast intake speed, can increase air negative pressure, thus increasing the mixing ratio of oxygen and gas; at the same time, the pressure generated is large, avoiding tempering.
4. Flameout protection device:
Material: é•Šchrome -constantan; function: precise control, temperature control induction, can quickly cut off the valve within 15 seconds of accidental flameout to ensure family safety. At present, this kind of flameout protection method is adopted in the industry. This technology is mature and safe.
5, intake pipe assembly - double-sided electrophoresis:
Treatment process: The inlet pipe adopts “internal and external double-sided electrophoresisâ€. The electrophoresis treatment process is highly resistant to acid and alkali and corrosion, so that the airflow channel is always smooth and tightly sealed, avoiding safety hazards caused by air leakage and safety. . The galvanized pipe is used, and the inner layer is not treated. The long-term use is likely to cause corrosion of the intake pipe and there is a safety hazard.
The above is what the small size of the cooker brings to you? What is the structure of the cooker? I believe that everyone has a basic understanding of the size of the cooker after reading this article. If you want to know more about decoration, please click on the decoration knowledge channel .
