Username: Shuangyi Primary School, Shunyi District, Beijing
User needs:

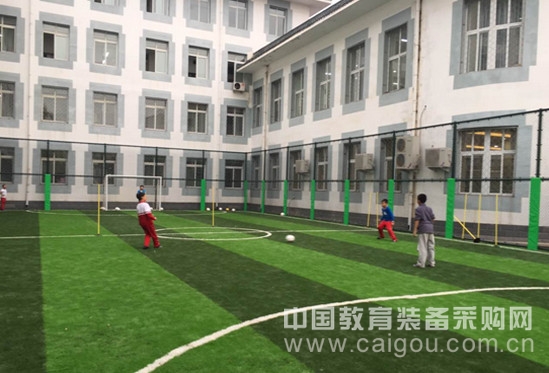

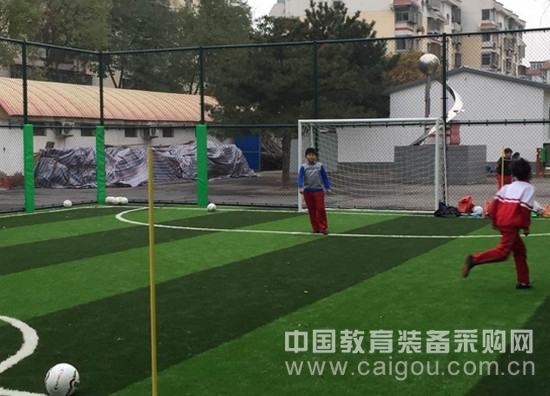

15*30m venue for football field, artificial grass and purse
Application products:
Responding to the national call to develop campus football
Construction plan:
(1) Construction of site protection net:
1. The specific process methods are as follows:
(1) Embedded parts: According to the design requirements, the embedded parts (or optional pre-embedded parts) can be made. The embedded parts are placed in the excavated pre-buried pits, and the position is adjusted to carry out cement pouring.
(2) Steel pipe treatment:
1 material anti-rust treatment: on the column, crossbar, flat steel degreasing, derusting, painting, eye drilling.
2 pole welding: welding the steel pipe to the embedded part. No leakage welding, no welding, and timely cleaning of welding slag
3 Weld the cross tube between the columns. Before welding, each monomer is required to be straightened and burrs and rust removed. The welded parts are required to be excessively rounded, and there are no defects such as slag inclusion, virtual welding, and pores.
After the 4 mesh frame is welded, the position of the welded joint should be smoothed to completely remove the welding slag, and then a touch up paint.
2. Install the fence:
1 Open the chain link fence, flatten the chain link fence, and align the ends of the two ends.
2 Using a special stretcher device to stretch the plastic mesh to the fixed position of the column and the crossbar, and then use the flat steel and special screws to drill, install and fix. The fixed point spacing is 50 cm/hole.
3. Manufacture and install the protective net door according to the design.
4, check the repair fence:
During the installation process, the parts that are operated with the paint such as the column and the cross bar and the flat steel are inspected and repaired, and the plastic mesh that has passed the tension and beyond the column and the cross bar is trimmed and integrated.
(2) Artificial grass construction process:
1), choose the brand
The artificial turf is made of artificial grass fiber as raw material and processed by the world's advanced machinery and equipment. The product quality is stable and the performance is reliable. It has been proved by practice and experiment by international authorities and industry users.
Height: 50mm
Color: The color of the lawn is green and the color of the border line is white.
2) Artificial turf construction requirements:
(1), basic processing
Rinse the foundation of the sports field. In order to ensure the flatness and slope, the individual base areas are leveled, and the lower parts are filled with the same base material.
(2), artificial turf laying
1 All lawns should be unfolded before the lawn is paved, so as to avoid wrinkles and joint cracking caused by the tension in the cold rise and contraction of the lawn.
2 According to the specifications of the design drawings and the planning of the material of the artificial turf sports field, the measuring and releasing line shall be used. The marking point of the discharging line shall be marked with an obvious mark, and the tolerance is ±5mm.
3 According to the line marking, the artificial turf will be laid according to the paving plan. According to the long side of the playground, the joints will be connected from one side to the other. In the process of connecting the seams, we must pay attention to the positive and negative conditions of the connecting belt. In the process of coating, it must be evenly painted and then bonded. The adhesive joints are allowed to have a gap of 1-2 mm. If the range is too large, obvious seam marks will appear. After the paving is completed, it is necessary to check whether the joint areas are firm and the joints are flat. If there are any problems, they should be repaired in time.
(3), filled with quartz sand and rubber particles
The first layer is filled with quartz sand. The 50mm artificial turf has a sand filling capacity of about 25 kg/m2 and a sand diameter of 0.4-0.8 mm. The speed of the sand filling machine and the amount of sand filling should be uniform, and the quartz sand and the site should be kept dry to make the sand filling smooth.
The second layer is filled with rubber particles, the amount of rubberized particles is 8 kg/m2, and the diameter of the rubber particles is 0.6-1.5 mm. After the filling of the rubberized particles, it is necessary to check whether it is flat and sufficient, and the insufficient amount needs to be added, and the excess is removed. Brush back and forth with a brush to ensure uniform sand filling, smooth surface, sand filling and rubber content should be at the height of the grass, in order to enhance the comfort of the surface, maintain a natural green appearance, and make the friction of falling and sliding minimize.
