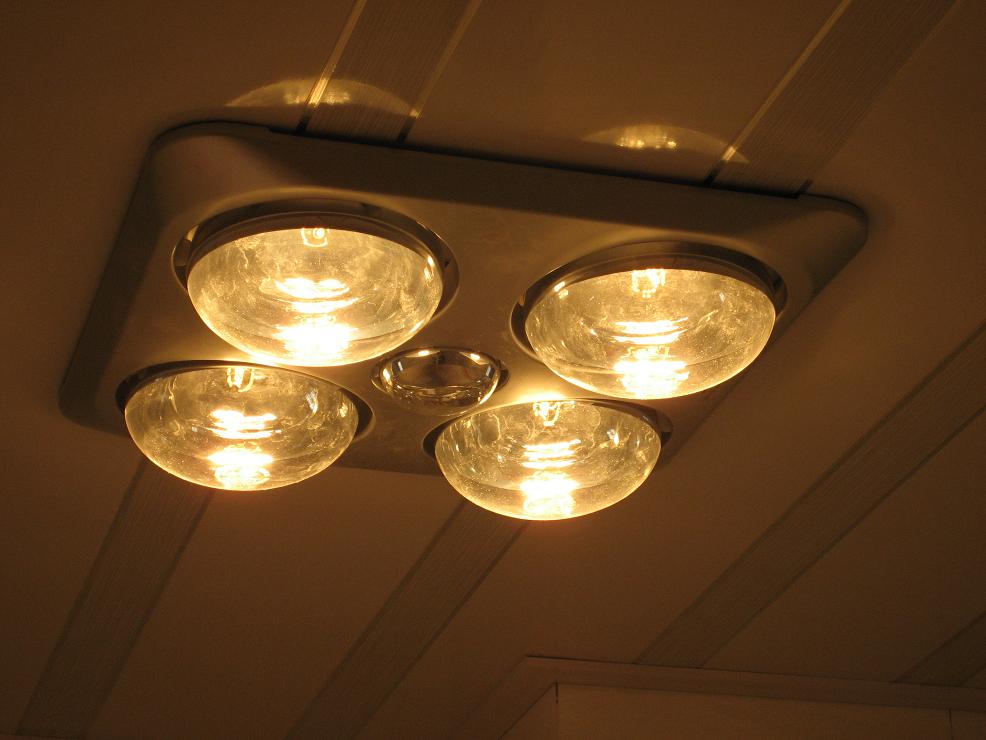

Even though Wen Neng can raise the pen and settle down in the world, Wu Neng can go on to set the stage, but they can't stop the winter cold! Yuba is a popular heating device in many homes, especially during the colder months. But do you know how it's wired? In this article, we'll take a closer look at the wiring diagram of an Op Yuba and explain the process in detail so you can understand how it works safely and effectively.
Understanding the OPPU Wiring Diagram
1. Check the Wiring Connections
Yuba units typically have three switches: two for controlling the heating lamps and one for the lighting. It’s important not to rush through the installation process. From the outside, it's impossible to tell if the wiring is correct. If done improperly, it could lead to serious issues like burning out the circuit. For safety, always make sure to turn off the power before opening the unit and check the wiring carefully. Some brands recommend removing the lamp before disconnecting the switch wiring to avoid any potential damage.
2. Consequences of Incorrect Wiring
If the wiring is incorrect, several problems may arise when the Yuba is turned on. The lighting, heating, and exhaust modules might all activate simultaneously, which isn’t ideal. This can cause unnecessary energy consumption and even damage the unit over time. Always follow the wiring diagram provided by the manufacturer to ensure everything functions as intended.
3. Identifying the Wire Colors
When wiring a Yuba, there are generally three main wires to consider:
- Ground wire (yellow and green): This should be connected to the metal casing of the Yuba above the bathroom sink or near the socket.
- Neutral wire (blue or black): Typically connected to the screw terminal on the left side of the five-lamp caps under the socket.
- Live wire (red): Usually located on the bottom right of the socket, connected to one of the posts on the three switches.
Each switch has specific connections. One controls the lighting, with the other post connected to the center of the lamp head. The two heating switches each have their own post connected to the center of the respective heating lamps. In the terminal block, the neutral line (N) is connected to zero (0), while the other four wires control the heating, ventilation, and lighting functions. Make sure to match the colors correctly and double-check your work.
The pressure line location of the Yuba; according to the wiring diagram, the color-controlled line and the socket L are already connected when purchased. However, it's still essential to verify the connections before use.
Connect the live wire directly to the socket, the other hole to the neutral wire, and the lamp to the other end of the switch. Always ensure that the wiring is secure and properly insulated to prevent electrical hazards.
4. Important Precautions for OPPU Installation
When using an OPPU bathroom switch, there are some key points to keep in mind. First, ensure the switch has the proper thickness—too thin or too thick can affect performance. Avoid spraying water directly onto the switch, as this can cause serious damage. Also, maintain good humidity control in the bathroom to prevent moisture from causing short circuits or burning out the switch. Always prioritize safety when working with electrical components.
Important Reminder: While Yuba wiring may seem complicated, it’s crucial to take your time and be careful. A small mistake can lead to major issues. We hope this guide helps you better understand how to wire your Yuba safely. For more information, visit our website regularly or come in person to our experience center for direct assistance.
