1. Observe the installation of the balcony environment and turn off the power of the balcony. (Important note: If the balcony light has been installed, the balcony light should be removed first). Open the product box and check that the product parts are complete.

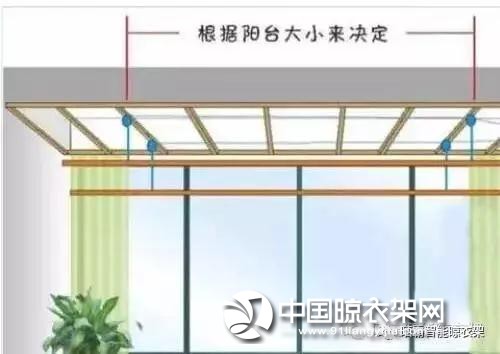

2. Using the installation template, measure the size of the balcony installation location to determine the installation location, and mark the 4 expansion screw holes.

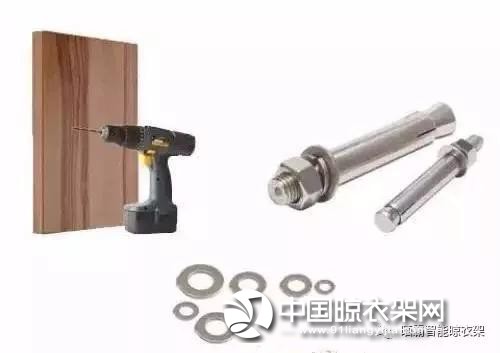

3. Use the impact drill to make 4 expansion screw holes (important note: the depth of the expansion screw hole is generally about 4-5CM). Insert the expansion screw into the hole and fix it with a wrench (the screw cannot be tightened at this time)

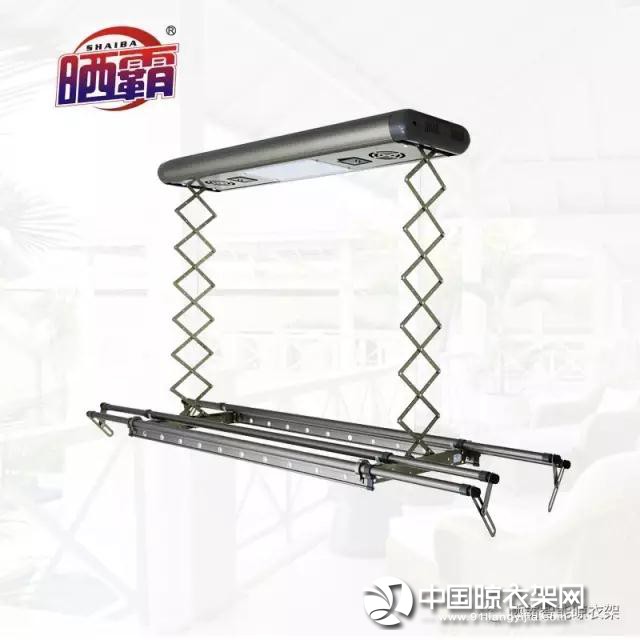

4. Insert the main unit into the four screws (note that the distance between the main power cable and the top power cable is sufficient), fix it with a wrench, connect the main unit and the top power cable (make sure the power is off before wiring), wrap it with insulating tape. Tightly, then install the telescopic frame on the fixed column on both sides of the machine (note that the telescopic frame can not be reversed, that is, the column with the card wire is facing inward), the wire is stuck in the column groove, and then the circlip is used The card slot on the fixed post is stuck.

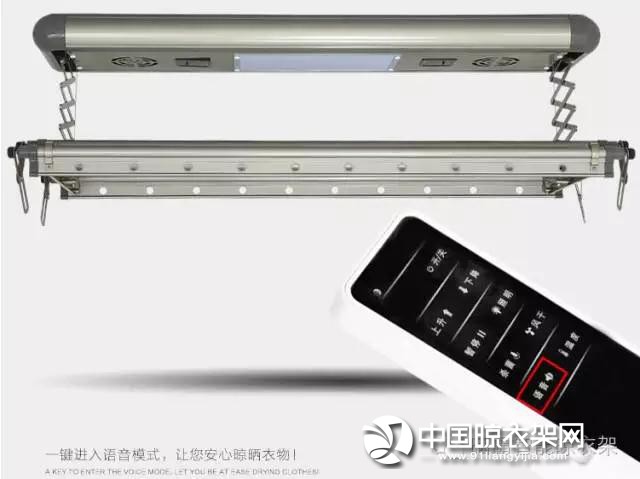

5. After the installation of the 2 telescopic racks is completed, take out the remote control and install the battery in the remote control. At this time, turn on the power, you will hear the sound of the host “嘀, 嘀, 嘀â€, indicating that the host is connected normally, then Press the down button of the remote control, the telescopic frame will drop at this time (if the telescopic frame does not fall, please follow the clear or air dry, disinfection button, if no response, the host and remote control are not correct, please follow the instructions to operate the code). When the telescopic frame is lowered to the lowest, it will automatically stop. At this time, the drying rod can be installed on the telescopic frame. After the installation is completed, check each function switch of the remote controller one by one. After no problem, fix the end covers on both sides of the main unit.

Editor: China drying rack net - Xiaoqi
