Abstract: Moisture resistance is an important consideration for whether the soft plastic composite film material can be used for packaging pesticides. This paper introduces the method of detecting the moisture resistance of pesticide packaging by infrared sensor method through the test of the water vapor transmission rate of aluminized composite film for a pesticide packaging, and describes the test principle, parameters and application scope of the equipment test system, and the test The process and Other contents provide a reference for enterprises to verify the moisture resistance of flexible plastic composite films for pesticide packaging.
Keywords: pesticide packaging, soft plastic composite film, moisture barrier performance, water vapor transmission rate, infrared sensor method, moisture resistance
1. Significance
As a large grain production country, the production and demand of pesticides in China are huge, and the materials and forms used for packaging pesticides have also changed with the continuous advancement of packaging technology. The glass bottle is a traditional packaging form of pesticides, which has the advantages of low permeability, good barrier properties, and strong corrosion resistance. However, the fragility of the glass determines the inconvenience of its transportation process; plastic bottles can have the advantages of glass bottles, and Overcoming the shortcomings of glass bottles that are easily damaged during transportation, they are widely used in pesticide packaging. Common plastic bottles for pesticide packaging include high-density polyethylene bottles, polyester bottles, and composite bottles with a barrier layer structure. However, the packaging And the transportation cost is high; the cost of the soft plastic composite film packaging bag is low, and the transportation is convenient. With the continuous optimization of adhesives and composite processes, the types of pesticides that can be packaged are gradually increasing.
Among the many influencing factors of whether the packaging bag can be used for packaging pesticides, the moisture barrier performance of the soft plastic composite film material is one of the important considerations. If the moisture barrier performance of the packaging material is poor, the moisture resistance is not good, and it is easy to cause solid pesticides Moisture agglomeration, the concentration of liquid pesticides is reduced, the composition changes, and the efficacy is reduced. In this paper, the test method of moisture resistance of flexible plastic composite film materials used in pesticide packaging is targeted.

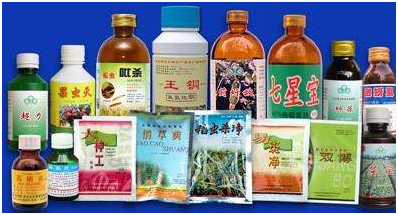

Figure 1 Different types of pesticide packaging
2. Test samples
The test sample used in this test is aluminized composite film for pesticide packaging (which belongs to soft plastic composite film).
3. Test basis
Water vapor transmission rate is an important parameter to characterize the moisture resistance of materials. The testing principles of water vapor transmission rate of film and sheet samples are mainly divided into cup method, electrolytic sensor method, infrared sensor method, and humidity sensor method. According to the range of the water vapor transmission rate of the tested sample, the infrared sensor method is used to test the moisture resistance of the sample. The test process is based on the standard GB / T 26253-2010 "Determination of water vapor transmission rate of plastic film and sheet infrared detector" law".
4. Test equipment
The test equipment used in this article is the C390 water vapor transmission rate test system, which was independently developed and produced by Jinan Languang Electromechanical Technology Co., Ltd.

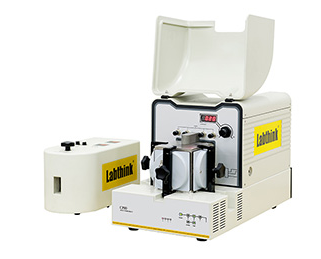

Figure 2 C390 water vapor transmission rate test system
4.1 Test principle
Infrared sensor method to test the water vapor transmission rate test process includes water molecules permeating through the sample and infrared light quantitative absorption of water molecules in two parts, by controlling the humidity on both sides of the sample to make it form a certain humidity difference, water vapor will Under the effect of humidity difference, the sample penetrates from the high humidity side to the low humidity side, and the nitrogen on the low humidity side carries the permeated water vapor into the infrared sensor for testing to obtain the water vapor transmission rate of the sample.
4.2 Device parameters
When the test area of ​​film samples is 50 cm2, the test range is 0.05 ~ 40 g / (m2 · 24h); when the test area is 7 cm2, the test range is 0.35 ~ 280 g / (m2 · 24h); The range is 0.00025 ~ 0.2 g / (pkg · d); the test temperature control range is 15 ℃ ~ 55 ℃, the temperature control accuracy is ± 0.2 ℃; the humidity range is 5% RH ~ 90% RH, 100% RH, the humidity control accuracy It is ± 2% RH; the three test modes of manual, proportional, and cyclic provide suitable detection methods for materials with different barrier properties; using the second-generation three-chamber integrated block, the three test chambers can be designed independently, and the test process is mutual No interference, the test results are displayed independently.
4.3 Scope of application
(1) This equipment is suitable for testing the water vapor transmission rate of films, sheets, paper, paperboard and its composite materials, containers and other packages. Films include various plastic films, paper-plastic composite films, aluminized films, aluminum foil, aluminum foil composite films, glass fiber aluminum foil paper composite films, etc .; sheet materials include various engineering plastics, rubber, building materials and other sheet materials, such as PP sheets Wood, PVC sheet, PVDC sheet, etc .; paper, cardboard and its composite materials include paper, cardboard, etc., such as cigarette pack aluminized paper, paper aluminum-plastic composite sheet, etc .; containers include plastic, rubber, paper, paper-plastic composite , Glass, metal and other materials made of bottles, bags, cans, boxes, barrels, such as tea aluminum cans, Coke bottles, peanut oil barrels, Tetra Pak packaging, vacuum packaging bags, metal packaging bags, metal three-piece cans, plastic cosmetics soft Tube packaging, toothpaste tube packaging, jelly cups, etc.
The device can also be extended to test the water vapor transmission rate of special packages such as solar backplanes, liquid crystal display films, medical blister, pharmaceutical plastic bottles, sterile protective wound films, automobile fuel tanks, battery plastic shells and other special packages.
(2) This equipment complies with GB / T 26253, GB / T 31355, ISO 15106-2, ASTM F1249, TAPPI T557, JIS K7129, YBB00092003.
5. Test process
(1) Use a sample cutter to cut 3 specimens from the surface of the sample of aluminized composite film for pesticide packaging to be tested.
(2) Apply vacuum grease to the surfaces of the three permeation cells of the equipment, and sandwich the three pieces of the sample into the three permeation cells to ensure that there is no air bubbles between the sample and the permeation cell and the seal is good.
(3) Set the test temperature, test humidity, sample name, sample thickness, test mode and other parameter information, click the test option, the test starts, turn on the gas source, adjust the carrier gas flow rate, so that the humidity in the device reaches the set value.
(4) The device automatically performs the test according to the set parameters, and displays the test result after the test.
6. Test results
The test results of the water vapor transmission rate of the three samples were 0.37g / (m2 · 24h), 0.43g / (m2 · 24h), 0.36g / (m2 · 24h). The water vapor transmission rate of the aluminum composite membrane sample is the average value of the test results of the three samples, which is 0.39 g / (m2 · 24h).
7. Conclusion
The moisture resistance of packaging materials is an important factor that affects how much water vapor can be exposed to pesticides inside the packaging during storage, and is closely related to whether the pesticide storage process can maintain good efficacy. This paper uses the infrared sensor method equipment C390 water vapor transmission rate test system to test the water vapor transmission rate of the aluminized composite film samples for pesticide packaging. The test process is simple, the equipment is easy to operate, the degree of intelligence is high, and the test results are accurate and reliable. It truly reflects the water vapor transmission rate of the tested sample. Jinan Languang Electromechanical Technology Co., Ltd. is a high-tech enterprise specializing in the development and production of packaging testing equipment and packaging testing services. The existing equipment can also be used for oxygen barrier performance, sealing performance, heat sealing strength, compound fastness, bottles Cover opening performance and other performance tests. The more you understand, the more you trust! Labthink looks forward to enhancing technical communication and cooperation with enterprises and institutions in the industry!
