The central air conditioning tuyere is the end device for air supply and return air in the central air conditioning system, and is an air distribution device. So what is the central air conditioning outlet? How to choose the size of the central air conditioning tuyere? Let's take a look at the decoration home decoration network Xiaobian.
Which is better for central air conditioning outlets?
1. Double-layer hundred-page air outlet, double-layer hundred-page air outlet is generally used as air supply port, and can also be directly used with fan coil tube. It is widely used in the end of central air-conditioning system, and can also be used together with split multi-leaf regulating valve. Adjust the air volume.
2 , single-layer louver tuyere, single-layer louver tuyere can be adjusted up and down wind direction, the return air outlet can be used with the tuyere filter net, the section angle can be adjusted, and there are ABS plastic fixing brackets between the blades .
3 , fixed strip air outlet, fixed strip air outlet in the central air conditioning system for heating and cooling, can be installed on the side wall or ceiling.
4 , self-draining air-conditioned room with positive pressure from the louvered vents. Normally, the louvers rely on the weight of the tuyere to naturally sag, and isolate the air exchange between indoor and outdoor. When the indoor air pressure is greater than the outdoor air pressure, the airflow blows the louvers and exhausts outward. Otherwise, when the indoor air pressure is lower than the outdoor air pressure, the airflow cannot be reversed. Flowing into the room, the tuyere has a one-way check function.
5 , diffuser, diffuser is the common air supply port in the central air conditioning system, can be made square or rectangular according to the use requirements, can match the decoration requirements of any ceiling. The inner core portion of the diffuser can be detached from the outer frame for easy installation and cleaning. The rear can be equipped with a tuyere regulating valve to control the air volume. Suitable for broadcasting studios, hospitals, theaters, classrooms, concert halls, libraries, amusement halls, theater lounges, general offices, shops, hotels, restaurants, and gymnasiums.
6 , spherical adjustable air outlet, spherical adjustable air outlet is a spout type air supply. The high-speed airflow supplies air in a specified direction through the nozzle of the valve body, and the airflow direction can be conveniently adjusted in the conical space with a apex angle of 35 °, and the gas flow rate can also be adjusted by the degree of opening and closing of the valve. It is often used in high-speed roof or high-speed air supply, such as airport waiting halls, indoor stadiums, hotel kitchens and other occasions.
7. The swirling tuyere and the swirling tuyere send out the rotating jet, which has the characteristics of large induction ratio and fast attenuation of wind speed. It can be used as a large air volume in the central air conditioning ventilation system, and the large temperature difference is provided to reduce the number of tuyères, and is installed on the ceiling or ceiling. It can be used for low space within 3 meters, and can also be used for air supply with two kinds of heights, and the height can even reach more than 10 meters.
What is the size of the central air conditioning tuyere?

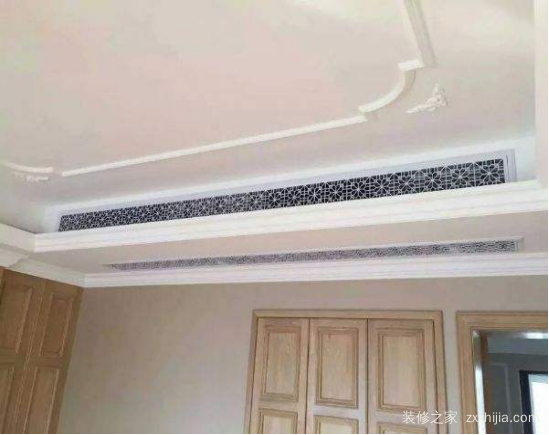

Unlike traditional cabinets and wall-mounted machines, the size of the central air-conditioning outlet / return air outlet is not clearly defined because it is synchronized with the interior decoration and the indoor unit is hidden in the ceiling . In the actual design and installation process, it needs to be flexibly modified according to the home decoration, and the size of the outlet / return air outlet depends on the size of the indoor unit.
If the size of the air outlet of the central air conditioner is too large and the air duct is too long, the airflow speed will decrease, which will affect the air conditioning effect . If the size of the air outlet of the central air conditioner is too small, the airflow speed will become large, causing the wind to blow the human body directly. The discomfort caused by it may also cause excessive noise.

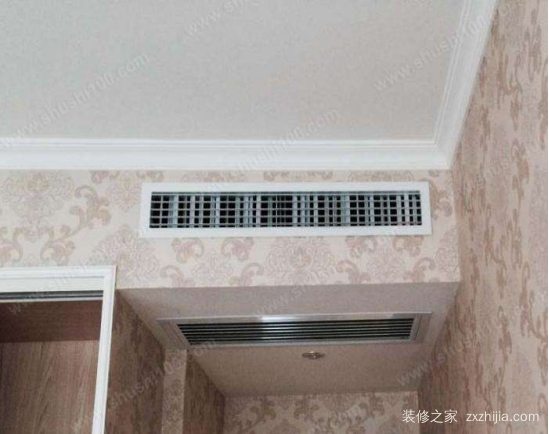

Under normal circumstances, the size of the air outlet of the central air conditioner is 15cm*60-100cm , the return air is 26cm*60-100cm , and the inspection port is 35cm*35cm . The width of the air and return air can be basically determined, but the length must be Reasonable design according to the length of the indoor unit and the decoration environment.
The above is what the small air conditioner brings to you. Which is better? The whole content of the central air conditioning vent size selection, I believe that everyone has a basic understanding of the central air conditioning vents after reading this article, if you want to know more about the decoration consultation, please click to enter the decoration knowledge channel .
