Ultrasonic Emulsification Dispersion of Shanghai Xinzhuang Instrument 1. Principle: The principle of ultrasonic emulsifier disperser is to convert electric energy into acoustic energy through ultrasonic transducer. This energy becomes a dense small bubble through liquid medium, and these small bubbles burst rapidly. Produces the same energy as a small bomb, which serves to break down cells and other substances.
2 Main use emulsification disperser is mainly used for emulsification and micro-emulsification of oil and water or other materials in petroleum and chemical processes. Ultrasonic emulsification disperser can also be used for liquid treatment in light industry, nano materials, food and medicine departments.

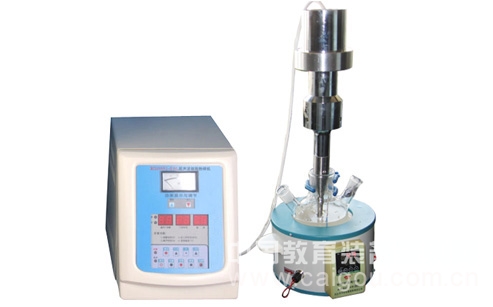

3 product composition and main advantages 1. Ultrasonic generator ultrasonic generator generates a specific frequency signal, this specific frequency is the frequency of the transducer, the ultrasonic frequency generally used in ultrasonic equipment is 20KHz, 25KHz, 28KHz, 33KHz, 40KHz , 60KHz.
2. Transducer Assembly The transducer assembly is mainly composed of a transducer and a horn.
3, the main advantages
The concentrating ultrasonic material emulsifier disperser directly immerses the horn of the high-power ultrasonic transducer into the reaction liquid, so that the sound energy directly enters the reaction system without being transmitted through the reactor wall of the cleaning tank. The advantage is that a large amount of energy can be directly delivered to the reaction medium, effectively converting electrical energy into mechanical energy, and the amount of ultrasonic energy can be controlled by changing the amplitude of the delivery to the transducer.
The product has strong expandability. (1) Optional cooling water circulation device, cooling water circulation device and special double-layer glass reaction reactor form a cooling water circulation system to achieve precise temperature control at any temperature point within the range of -5-100 °C, effective Avoid excessive temperature and cause damage to the sample tissue, which is more convenient and accurate than the traditional ice bath cooling.
(2) Optional magnetic stirrer. By stirring, the emulsification rate of the sample to be treated can be improved, and the treatment effect is better.
1. Principle: The principle of ultrasonic emulsifier disperser is to convert electrical energy into acoustic energy through ultrasonic transducer. This energy becomes a dense small bubble through the liquid medium. These small bubbles burst rapidly and produce like a small bomb. The energy, which is used to break down cells and other substances.
2 Main use emulsification disperser is mainly used for emulsification and micro-emulsification of oil and water or other materials in petroleum and chemical processes. Ultrasonic emulsification disperser can also be used for liquid treatment in light industry, nano materials, food and medicine departments.
3 product composition and main advantages 1. Ultrasonic generator ultrasonic generator generates a specific frequency signal, this specific frequency is the frequency of the transducer, the ultrasonic frequency generally used in ultrasonic equipment is 20KHz, 25KHz, 28KHz, 33KHz, 40KHz , 60KHz.
2. Transducer Assembly The transducer assembly is mainly composed of a transducer and a horn.
3, the main advantages
The concentrating ultrasonic material emulsifier disperser directly immerses the horn of the high-power ultrasonic transducer into the reaction liquid, so that the sound energy directly enters the reaction system without being transmitted through the reactor wall of the cleaning tank. The advantage is that a large amount of energy can be directly delivered to the reaction medium, effectively converting electrical energy into mechanical energy, and the amount of ultrasonic energy can be controlled by changing the amplitude of the delivery to the transducer.
The product has strong expandability. (1) Optional cooling water circulation device, cooling water circulation device and special double-layer glass reaction reactor form a cooling water circulation system to achieve precise temperature control at any temperature point within the range of -5-100 °C, effective Avoid excessive temperature and cause damage to the sample tissue, which is more convenient and accurate than the traditional ice bath cooling.
(2) Optional magnetic stirrer. By stirring, the emulsification rate of the sample to be treated can be improved, and the treatment effect is better.
Professional manufacturing is more secure, affordable, our quality is the best, worthy of your trust, Shanghai Xinzhuang welcomes you!
